天德鈺PD2.0快充協議IC：FP6608，FP6605，FP6603 PDF
詳情
內容簡介：
1，FP6605：單口PD2.0快充協議IC，SOP8封裝
2，FP6608：雙口（C口+A口）PD2.0快充協議IC
3，FP6603：可做雙路PD2.0快充協議IC

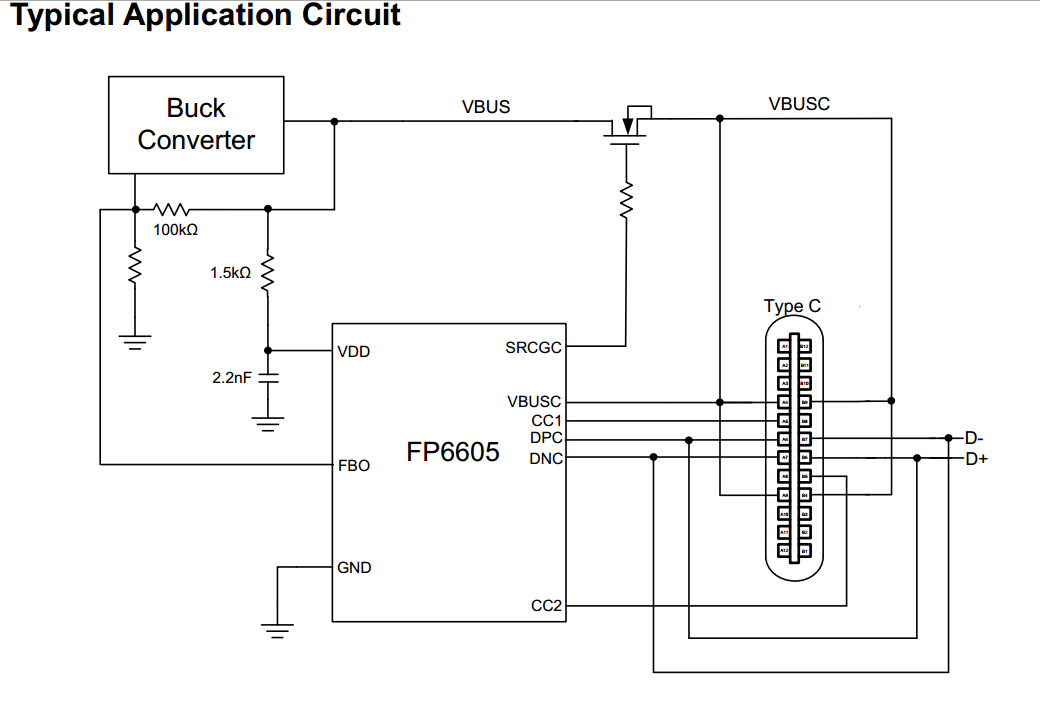

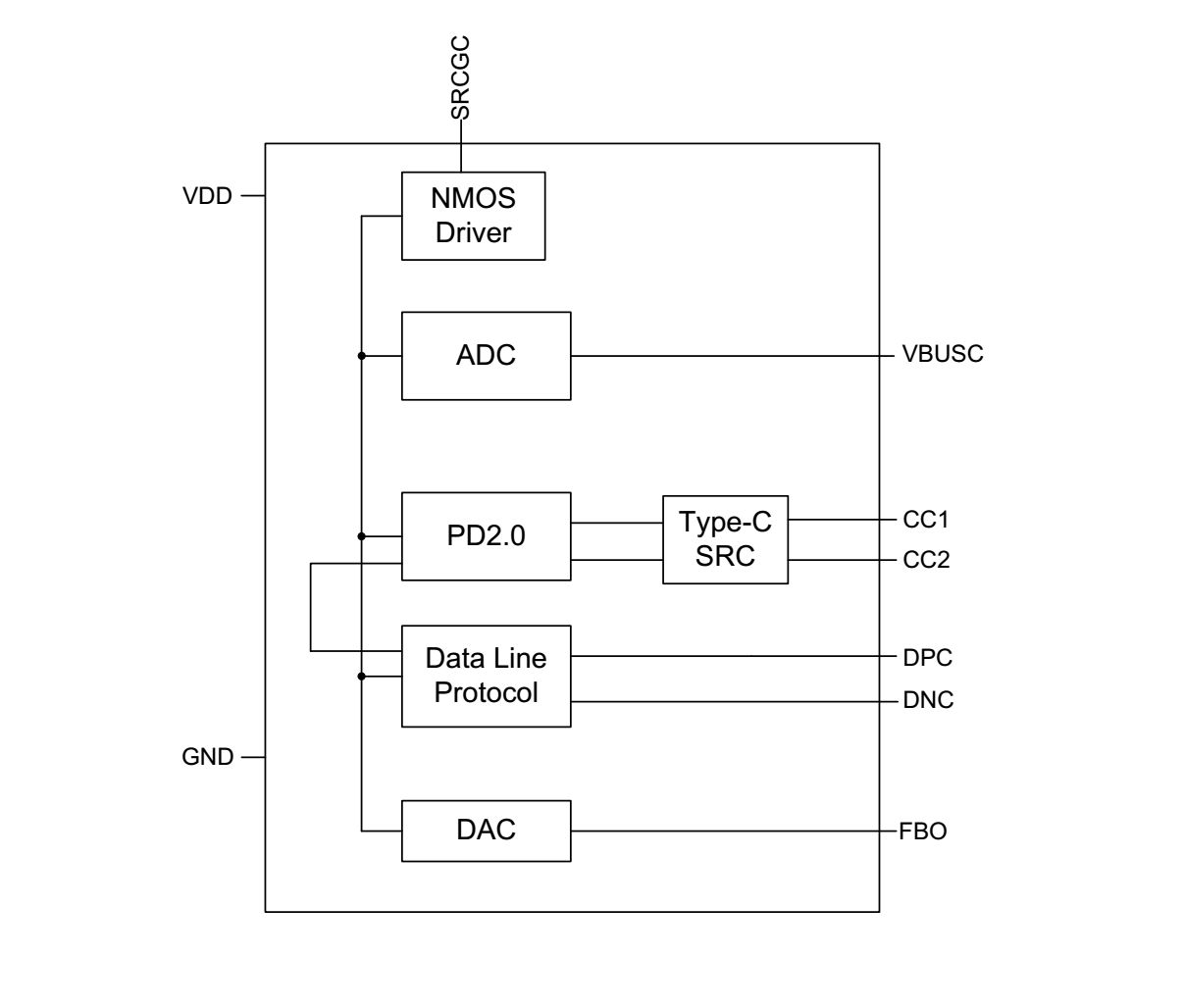

1，FP6605：單口PD2.0快充協議IC，SOP8封裝
The FP6605 is a simply USB Power Delivery (PD)protocol controller without USB-IF certification. Itintegrated functions for HiSilicon Fast ChargingProtocol (FCP) and Qualcomm Quick Charge2.0/3.0 source only interface.FP6605 couldsupport most consumer electronics product, likeNB, cell phone, Tablet, video game machine.
The FP6605 monitors the CC pin to detect a USBType C attach/detach. It is capable providingoutput voltage of 5V to 15V. The FP6605implements VBUS detection and discharge for theimplementation of compliant connection ports. Theprotection features include over-voltage (CC PinVBUS, D+ D-).
Features
●VDD Supply Voltage: 3.2V to 6.8V
●Supports USB Type-C and Power Delivery
-- 5 to 15V VBUS Source Only
-- CC1/CC2 Source Terminator 3A
●Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm
Quick ChargeTM 2.0/3.0Class A
● Automatically Selects FCP and QC2.0/3.0 Protocols
● Over-voltage and VBUSC Discharge Function
● SOP-8 Package( Exposed Pad)

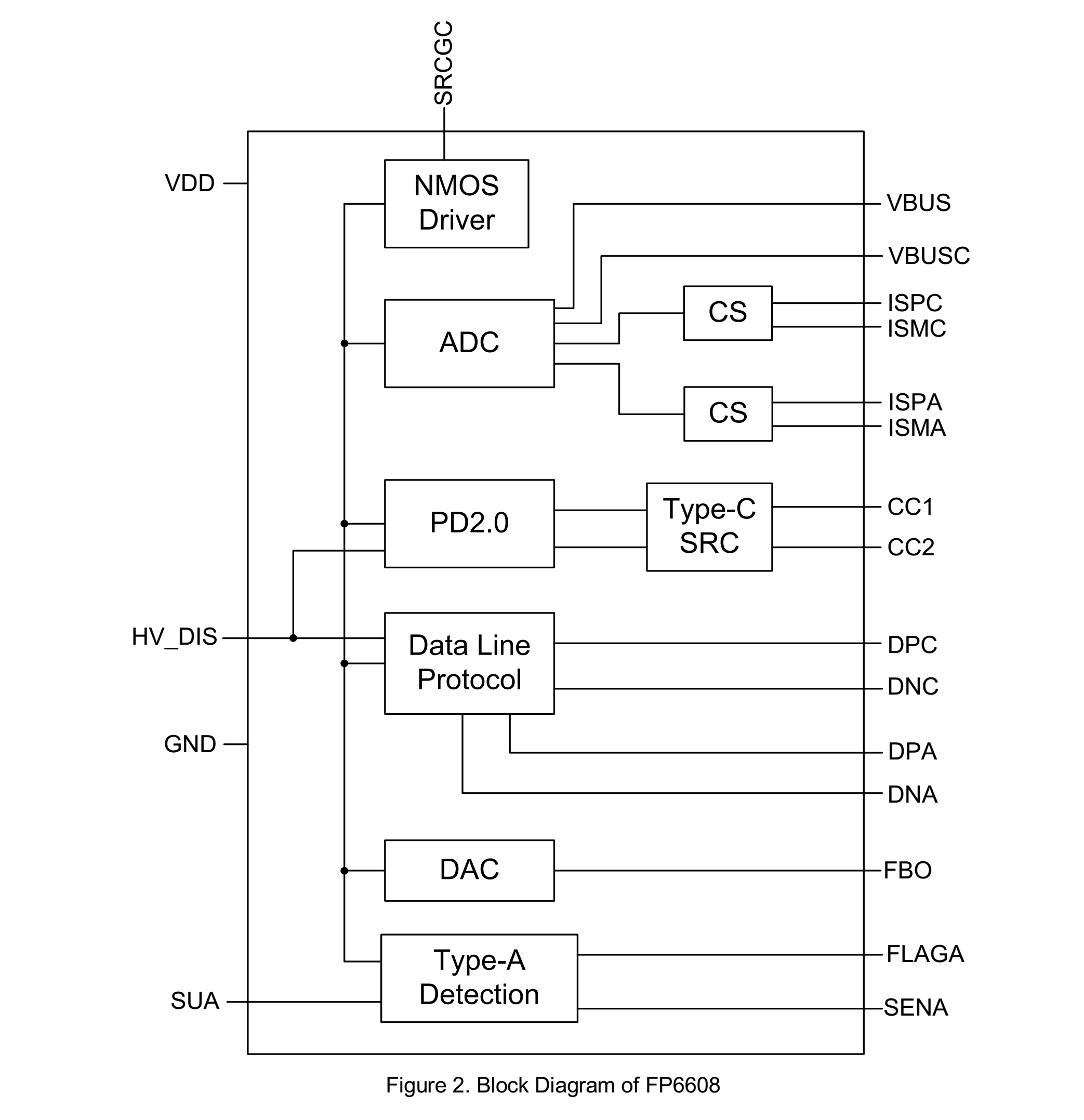

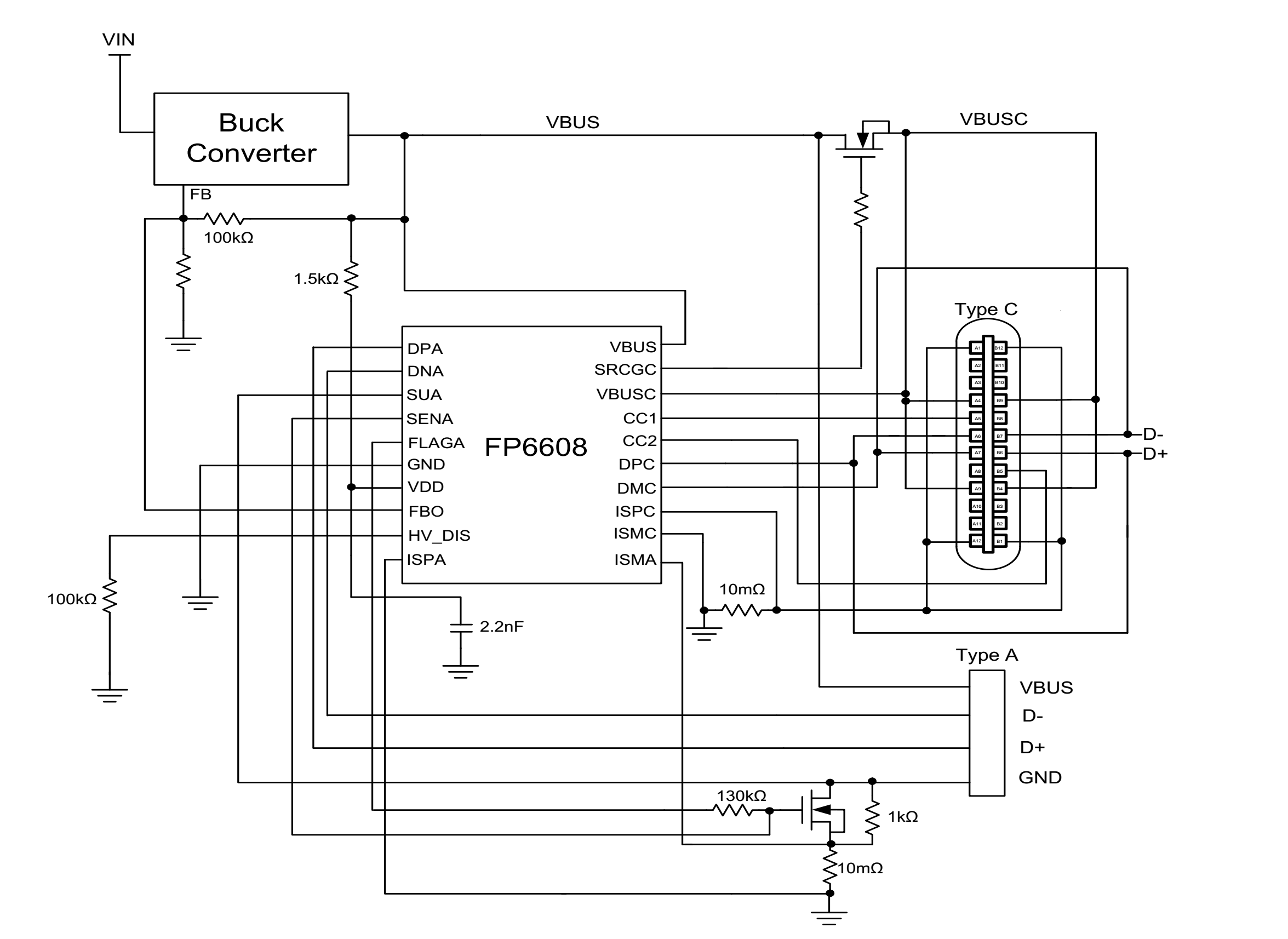

2，FP6608：雙口（C口+A口）PD2.0快充協議IC
The FP6608 is a simply USB Power Delivery (PD)protocol controller without USB-IF certification. Itintegrated functions for HiSilicon Fast ChargingProtocol (FCP) and Qualcomm Quick Charge2.0/3.0 source only interface. It also both provideType A and Type C connectors (1A1C). When1A1C connector plug into Simultaneously, outputvoltage will down to 5V. FP6608 could supportmost consumer electronics product, like NB, cellphone, Tablet, video game machine.
The FP6608 monitors the CC pin to detect a USBType C attach/detach. It is capable providingoutput voltage of 5V to 15V. The FP6608implements VBUS detection and discharge for theimplementation of compliant connection ports. Theprotection features include over-voltage (CC PinVBUS, D+ D-).Additionally, the FP6608 also monitors USB D+/Ddata line, connector plug in/out and automaticallyadjust the output voltage depending on differentdevice requirement. It is capable providing outputvoltage of 3.6V to 12V.
Features：
●VDD Supply Voltage: 3.2V to 6.8V
●Supports USB Type C and Power Delivery
-- 5 to 15V VBUS Source Only
-- CC1/CC2 Source Terminator 3A
●Supports HiSilicon Fast Charging Protocol (FCP)
● Supports Qualcomm Quick ChargeTM 2.0/3.0Class A
● Automatically Selects FCP and QC2.0/3.0 Protocols
● Supports USB DCP Shorting D+ Line to D? Line perUSB Battery Charging Specification, Revision 1.2
● Supports USB DCP Applying 2.7V on D+ Line and2.7V on D? Line
● USB A Port Plug in Detection
● HV Disabled Function in Multi Ports Application
● Over-voltage Protection and VBUS DischargeFunction
● SSOP-20L and TQFN-20L ( 3mmx3mm) Packages

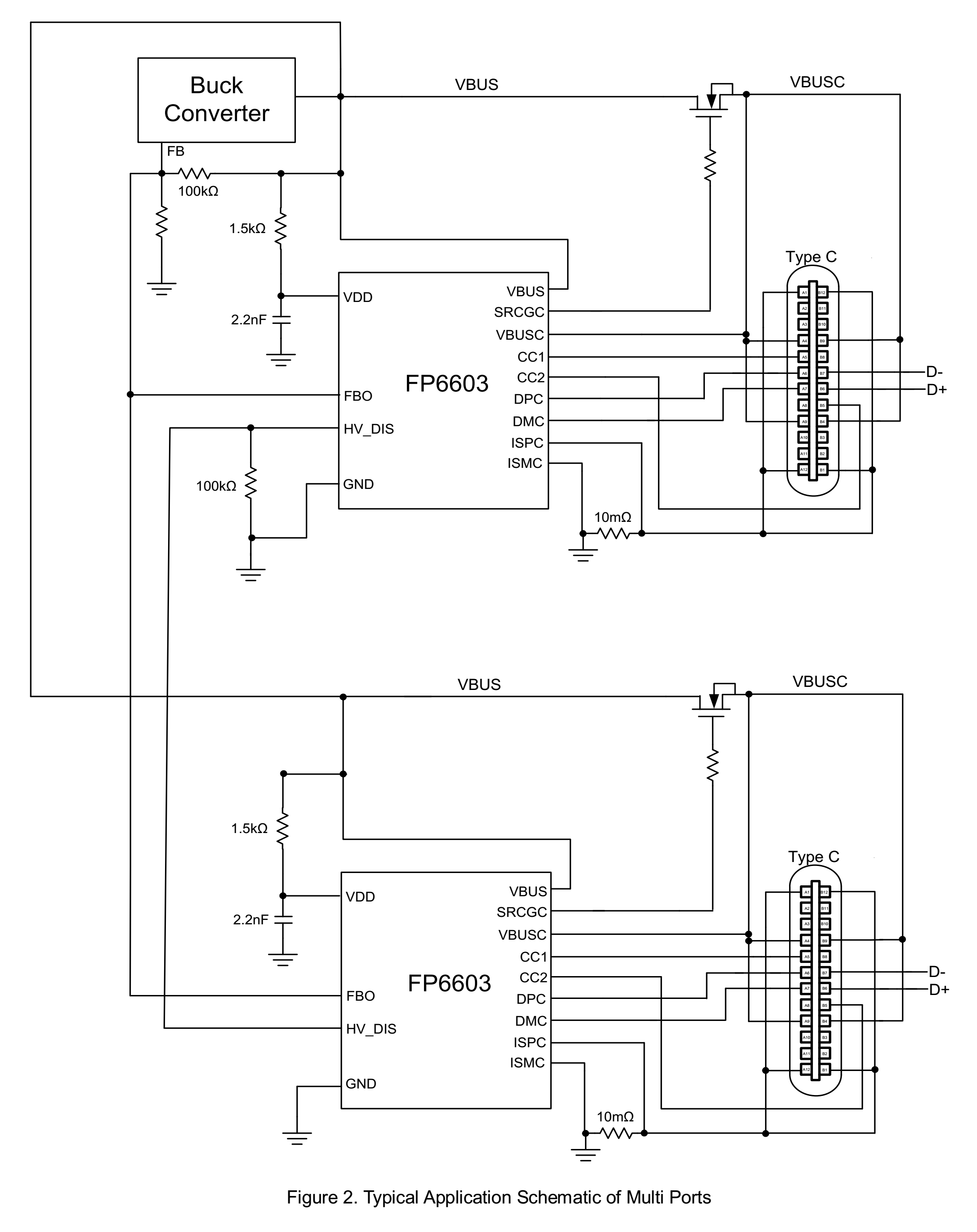

3，FP6603：可做雙路PD2.0快充協議IC
The FP6603 is a simply USB Power Delivery (PD)protocol controller without USB-IF certification. Itintegrated functions for HiSilicon Fast ChargingProtocol (FCP) and Qualcomm Quick Charge2.0/3.0 source only interface.FP6603 couldsupport most consumer electronics product, likeNB, cell phone, Tablet, video game machine.
The FP6603 monitors the CC pin to detect a USBType C attach/detach. It is capable providingoutput voltage of 5V to 15V. The FP6603implements VBUS detection and discharge for theimplementation of compliant connection ports. Theprotection features include over-voltage (CC PinVBUS, D+ D-).
Features:
|
